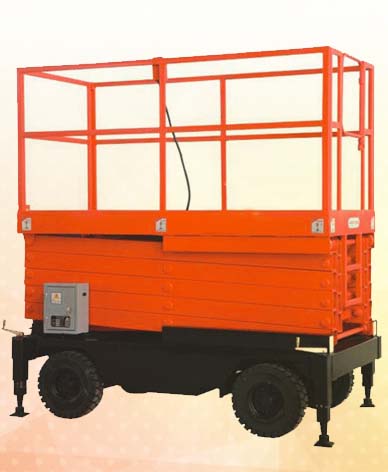

Standard Mobile Scissor Lift
JOM-SL-M Series

Model : JOM-SL-M-0.5-6 AC || JOM-SL-M0.5-7.5 AC || JOM-SL-M-0.5-9 AC || JOM-SL-M-0.5-11 AC || JOM-SL-M-0.5-12 AC || JOM-SL-M-0.5-14 AC || JOM-SL-M-0.3-16 AC

JOIST mobile scissor lift adopts scissor type mechanic structure to bring high stability adter being elevated. Wide operation platform and high loading ability has made wider aloft work arrange and is suitable for simultaneous multi-worker operation.

  • • Load Capacity: 500 kgs
  • • Platform Height: 6 to 16 mtrs
  • • Motor Power: 1.5 kw – 4 kw
  • • Power Voltage: AC380V
  • • Movement Manual
  • • Lifting Battery Operated
  • • Made of high strength and high quality manganese steel, it is durable and durable
  • • Smooth movements, low noise, can work in harsh environments
  • • The hinge points are optimized by computer to make it in the best position
  • • Between the fork between the hinge with oil-free bearings or grease nipples to ensure that the device itself good self lubricating
  • • Scissor-type lifting structure, after lifting a higher stability
  • • Large working platform and high carrying capacity, so that a wider range of high-altitude operations, more efficient, more secure security
  • Steering chassis design coupled with rubber inflatable wheel, easy to move and flexible
  • Power supply voltage selection AC industrial electricity AC380V

TECHNICAL SPECIFICATION:

Model   JOM-SL-M-0.5-6 AC JOM-SL-M-0.5-7.5 AC JOM-SL-M-0.5-9 AC JOM-SL-M-0.5-11 A
S.W.L. on Extension kg 500 500 500 500
Platform Height Max. mtr 6 7.5 9 11
Platform Size (L*W) mtr 1.85*0.88 1.8*1.00 1.8*1.00 2.1*1.15
Overall Length mtr 1.9 1.85 1.85 2.25
Overall Width mtr 1.12 1.24 1.24 1.59
Overall Height mtr 0.75 1.5 1.65 1.85
Lifting Time sec 54 72 80 88
Motor Power kw 1.5 1.5 1.5 2.2
Power Voltage V AC330 AC330 AC330 AC330
Weight kg 650 1100 1260 1380
Tyre   ø200 Polyurethane ø400-8 Pneumatic Tyre ø400-8 Pneumatic Tyre ø500-8 Pneutmatic Tyre
Driving Motor kw 0.75 0.75 0.75 0.75
Lifting Motor kw 2.2 2.2 2.2 3
Power Source Ah 120*2 120*2 120*2 150*2
Charger v/Ah 4/15 24/15 24/15 24/15
Overall Size mtr 1.95*1.08*1.1 1.95*1.2*1.54 1.95*1.2*1.68 2.25*1.35*1.7



Model   JOM-SL-M-0.5-12 AC JOM-SL-M-0.5-14 AC JOM-SL-M-0.3-16 AC
S.W.L. on Extension kg 500 500 500
Platform Height Max. mtr 12 14 16
Platform Size (L*W) mtr 2.45*1.35 2.45*1.35 2.75*1.5
Overall Length mtr 2.15 2.15 2.75
Overall Width mtr 1.59 1.59 1.74
Overall Height mtr 1.85 2 2
Lifting Time sec 90 120 130
Motor Power kw 3 3 3
Power Voltage V AC330 AC330 AC330
Weight kg 1850 2150 2680
Tyre   ø500-8 Pneutmatic Tyre ø500-8 Pneutmatic Tyre ø500-8 Pneutmatic Tyre
Driving Motor kw 0.75 1.2 1.2
Lifting Motor kw 3 2.3 2.3
Power Source Ah 200*2 150*4 150*4
Charger v/Ah 24/15 4/15 24/15
Overall Size mtr 2.5*1.55*1.88 2.5*1.55*2 2.85*1.75*2.1
