Mini Self Propelled Scissor Lift

Aerial Work Platform

single-product
single-product

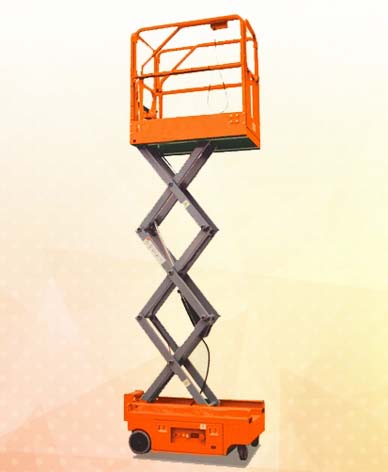

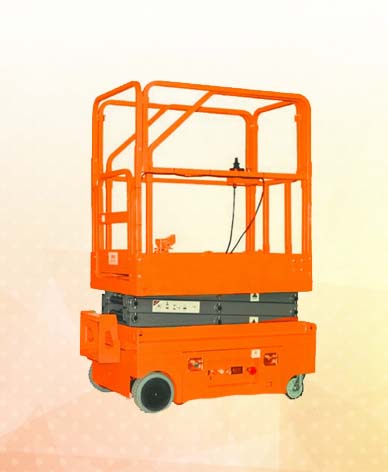

Mini Self Propelled Scissor Lift
JOM-SL-SP Mini Series

Model : JOM-SL-SP-3 || JOM-SL-SP-3.9

JOIST mini self propelled scissor lift, is a scissor type mechanic structure with high stability. It is can be used for the maintenance of minimum height area by single person.

  • • Rated load: 240 kg
  • • Max. Platform Height: 3 -3.9 mtr
  • • Platform Size: 1.15*0.7 mtr
  • • Power Voltage: AC380V
  • • Extension Length: 0.55 mtr
  • • Charger: 24v/11Ah
  • • Electrically motorized device, no nanpower required
  • • Emergency stop button
  • • Slider design, decreases the orbit of machine in the Height
  • • Charging indicator
  • • Safety check support
  • • Large working platform and high carrying capacity, so that a wider range of high-altitude operations, more efficient, more secure security
  • • Safety check support
  • • Maintenance supporting bar

TECHNICAL SPECIFICATION:

Model   JOM-SL-SP-3 JOM-SL-SP-3.9
Rated Load kg 240 240
MAX. Platform Height mtr 3 3.9
Max. Platform Occupancy   1 1
Platform Size m 1.15*0.7 1.15*0.7
Overall Length m 1.3 1.3
Overall Width m 0.76 0.76
Overall Height (Rails Up) m 1.86 1.94
Platform Height (GuarrailsFolded) m 1.5 1.59
Extension Length m 0.55 0.55
Load on Extension kg 100 100
Raise/Lower Time sec 28/20 32/21
Ground Clearance m 0.05 0.05
Turning Radius   0 0
Max Working Slope degree 1.5/2 1.5/2
Driving Wheel Size m 0.23*0.08 0.23*0.08
Gradability percent 25 25
Wheelbase m 1.03m 1.03m
Front Tyre in 6 6
Drive Speed (Stowed) km/h 4 4
Drive Speed (Raised) km/h 0.5 0.5
Power Source v/Ah 2*12/55 2*12/55
Lifting Motor v/kw 24/0.8 24/0.8
Driving Motor v/kw 24/0.3 24/0.3
Charger v/A 24/11 24/11
Weight kg 630 660
