Mini Mobile Scissor Lift
JOM-SL-M Mini Series
Model : JOM-SL-M-0.24-3 DC ||
JOM-SL-M-0.24-3.9 DC
₹ 35,000 - 50,000

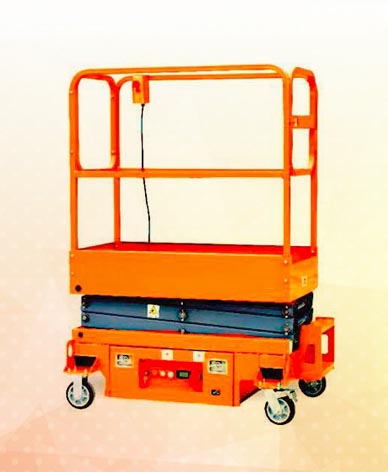

JOIST mini mobile scissor lift is used for single person maintenance purpose with the maximum platform height of 3 & 3.9 mtrs respectively.
- • Load capacity: 240 kg
- • Platform height: upto 3.9 mtr
- • Platform size: 1150*700
- • Auxiliary lowering device
- • Anti-burst system
- • Rain-proof system
- • Emergency stop buton
- • Inter lock door on the platform
- • DC power
TECHNICAL SPECIFICATION:
| Model | JOM-SL-M-0.5-12 AC | JOM-SL-M-0.24-3.9 DC | |
|---|---|---|---|
| S.W.L | kg | 240 | 240 |
| Platform Height Max. | mtr | 3 | 3.9 |
| Overall Length | mtr | 1.3 | 1.3 |
| Overall Width | mtr | 0.76 | 0.76 |
| Overall Height (Rails Up) | mtr | 1.83 | 1.92 |
| Overall Height (Rails Down) | mtr | 1.43 | 1.52 |
| Platform Size (L*W) | mtr | 1.15*0.07 | 1.15*0.07 |
| Wheelbase | mtr | 0.99 | 0.99 |
| Max. Workers Number | 1 | 1 | |
| Ground Clearance | mtr | 0.06 | 0.06 |
| Raise/Lower Time | sec | 34/20 | 34/21 |
| Tire | in | 6 | 6 |
| Lifting Motor | v/kh | 12/0.8 | 12/0.8 |
| Power Source | v/Ah | 12/85 | 12/85 |
| Charger | kg | 12/15 | 12/15 |
| Weight | 482 | 516 |
