Heavy Mobile Scissor Lift

Aerial Work Platform

single-product

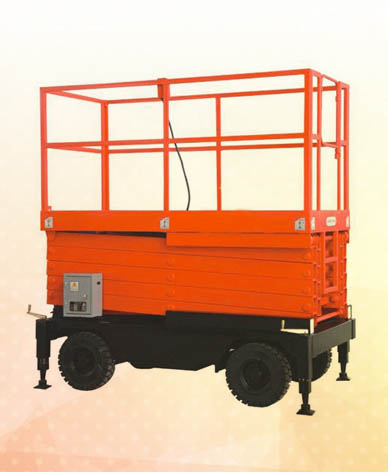

Heavy Mobile Scissor Lift
JOM-SL-M Heavy Series

Model : JOM-SL-M-1-6 AC || JOM-SL-M-1-9 AC || JOM-SL-M-1-12 AC

JOIST heavy mobile scissor lift adopts scissor type mechanic structure to bring high stability adter being elevated. Wide operation platform and high loading ability has made wider aloft work arrange and is suitable for simultaneous multi-worker operation.

  • • Load Capacity: 1000 kgs
  • • Platform Height: 6 to 12 mtrs
  • • Motor Power: 1.5 kw – 4 kw
  • • Power Voltage: AC380V
  • • Movement Manual
  • • Lifting Battery Operated
  • • Made of high strength and high quality manganese steel, it is durable and durable
  • • Smooth movements, low noise, can work in harsh environments
  • • The hinge points are optimized by computer to make it in the best position
  • • Between the fork between the hinge with oil-free bearings or grease nipples to ensure that the device itself good self lubricating
  • • Scissor-type lifting structure, after lifting a higher stability
  • • Large working platform and high carrying capacity, so that a wider range of high-altitude operations, more efficient, more secure security
  • Steering chassis design coupled with rubber inflatable wheel, easy to move and flexible
  • Power supply voltage selection AC industrial electricity AC380V

TECHNICAL SPECIFICATION:

Model   JOM-SL-M-1-6 AC JOM-SL-M-1-9 AC J JOM-SL-M-1-12 AC
S.W.L. on Extension kg 1000 1000 1000
Platform Height Max. mtr 6 9 12
Platform Size (L*W) mtr 1.8*1 1.8*1.25 2.45*1.35
Overall Length mtr 1.85 1.95 2.5
Overall Width mtr 1.24 1.45 1.55
Overall Height mtr 1.1 1.75 1.88
Lifting Time sec 80 100 135
Motor Power kw 2.2 3 4
Power Voltage V AC 330 AC 330 AC 330
Weight kg 950 1510 2700
Tyre   ø500-8 Pneutmatic Tyre ø500-8 Pneutmatic Tyre ø500-8 Pneutmatic Tyre
Optional Motorized Device With DC Power
Driving Motor kw 0.75 1.2 1.2
Lifting Motor kw 3 3 2.2
Power Source Ah 150*2 200*2 150*2
Charger v/Ah 24/15 24/15 24/15
Overall Size mtr 1.95*1.2*1.45 1.95*1.45*1.75 2.5*1.55*1.88
